Flanges
Special focus is given to complate range of stainless steel flanges in the wide range of diameters from DN 15 to DN 400.
Due to our wide range of items in stock, we can quickly supply any size of flanges according to cli-ents specifications.
Our main stock consists of the following materials:
S235, A105, 20, S355JRG2, P265GH, P245GH, P280GH
Stainless steel F304L, 316L, 316TI, 321, DUPLEX
The following types of flanges are available in stock:
– Flat flanges; WN flanges
– Weld neck flanges
– Blind flanges
– Made to order flanges
We only offer high quality certified flanges from the best approved manufactures.

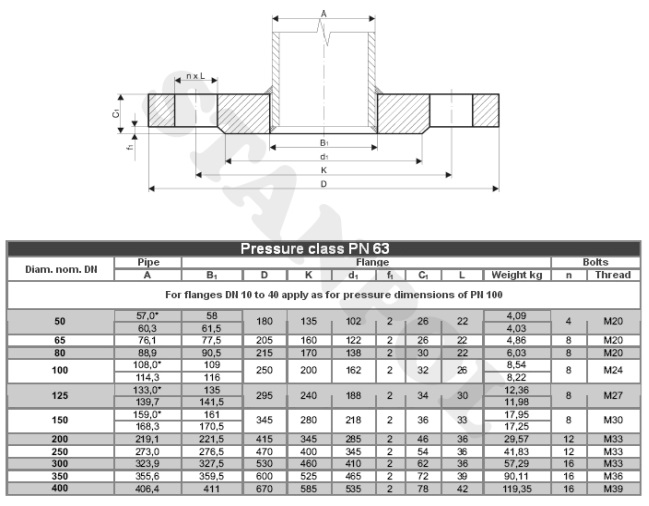

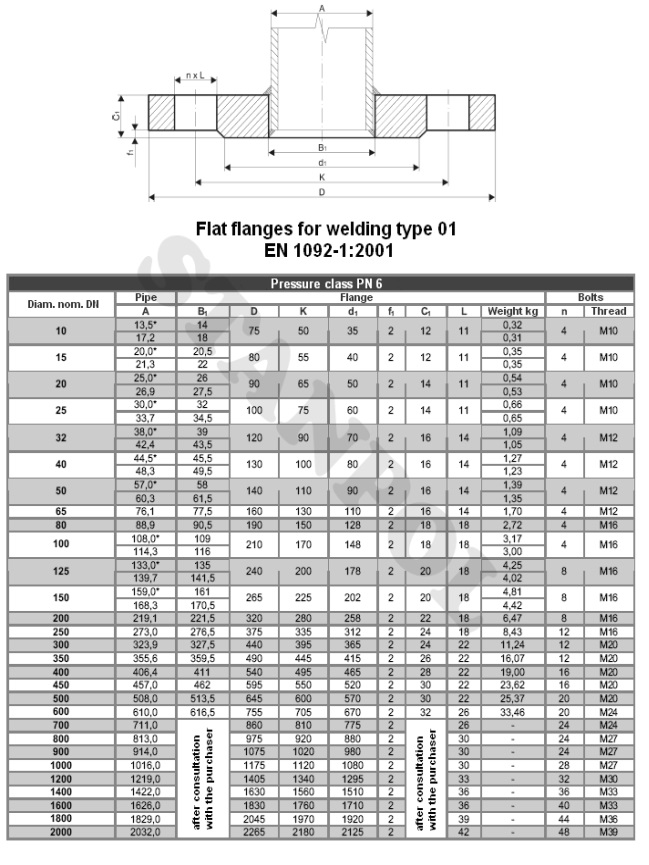

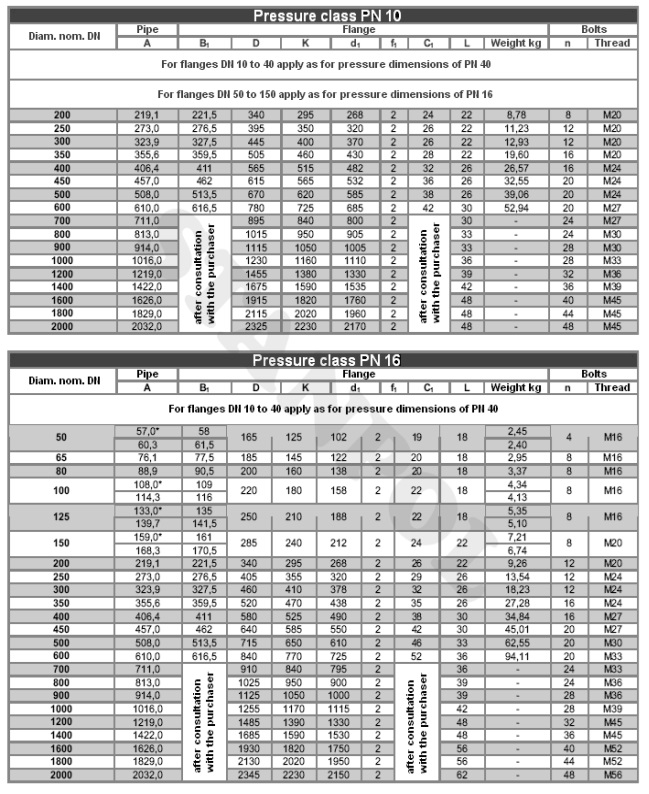

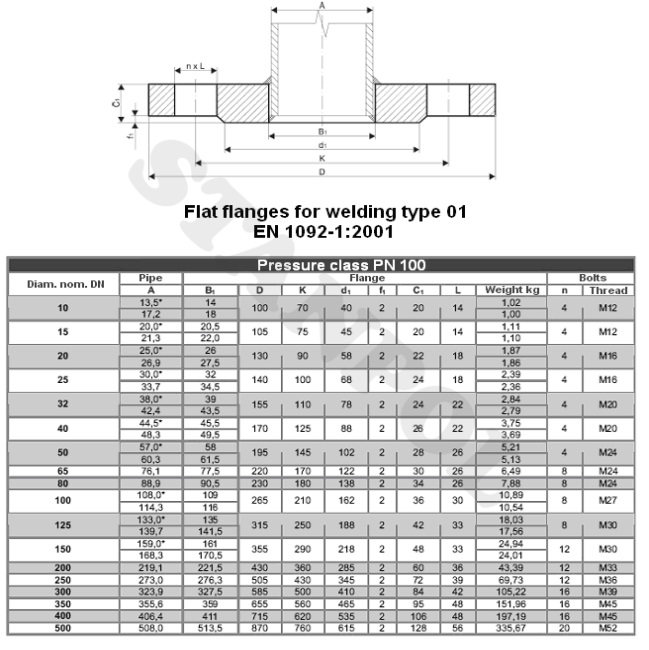

Flat flanges for welding type 01
Flanges ½” to 48”
Acc. to.: ANSI B16.5, ANSI B16.36, ANSI B16.47, DIN/EN1092-1
Pressure class: ANSI 150# to 2500#, EN PN6 to PN100
Available materials: Carbon steel: A105, A350LF2, LF3, LF4, LF6, A182F1, F11, F12, F22, F5, F9, F91.
Available materials: Stainless steel: A182 F304, F316, F321, F347
Duplex

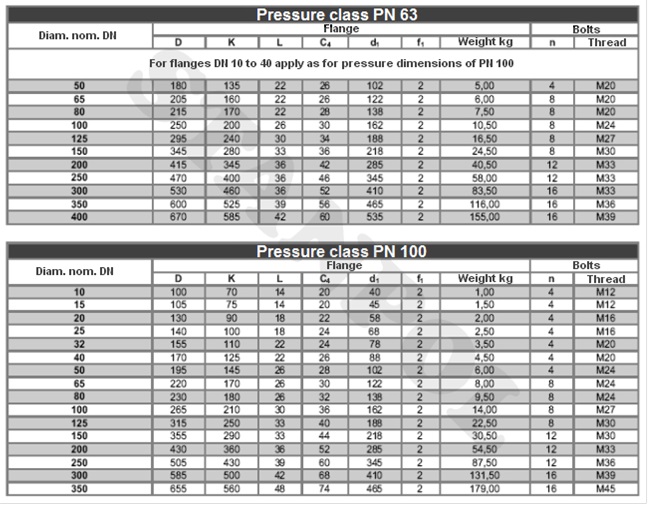

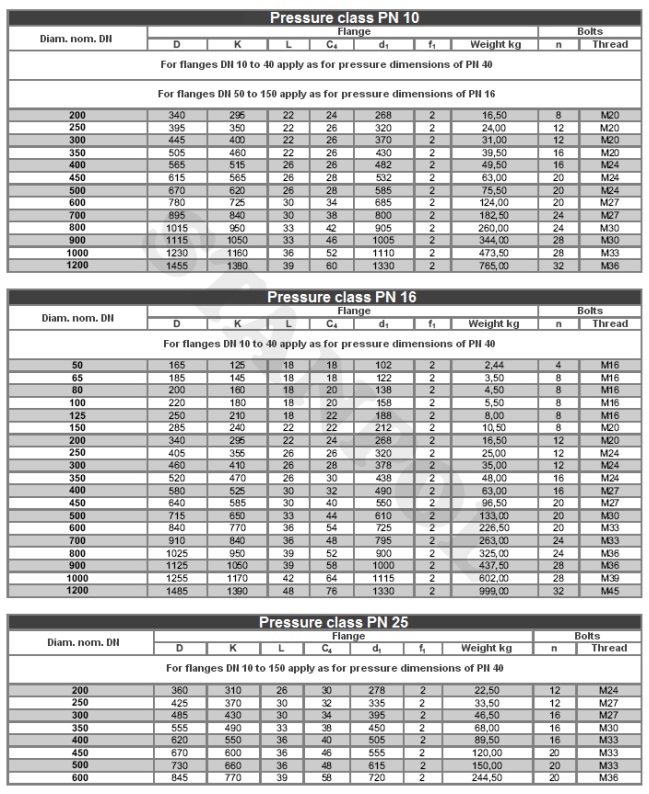

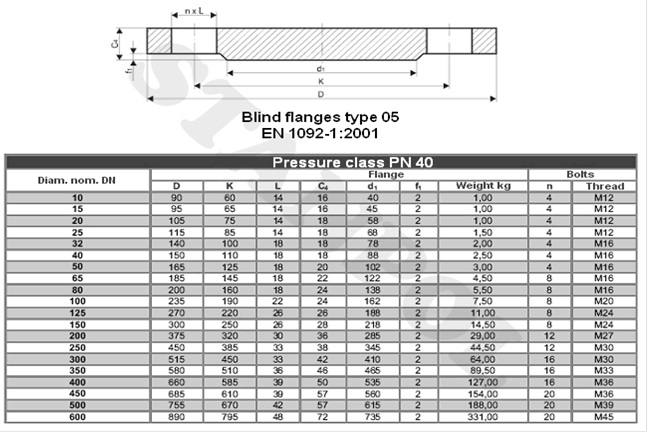

Blind flanges type 05

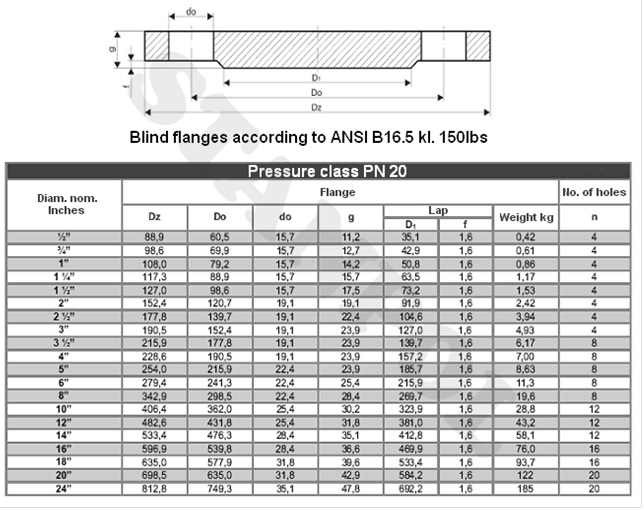

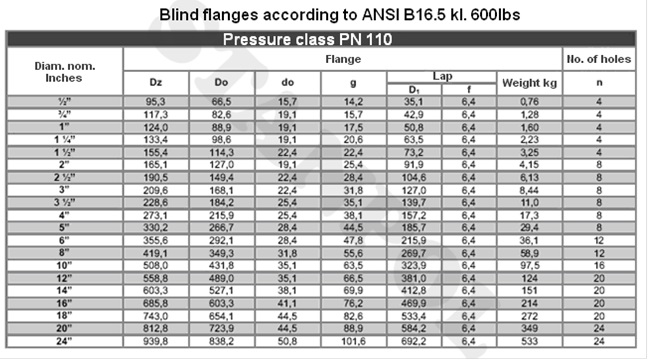

Blind flanges according to ANSI B16.5

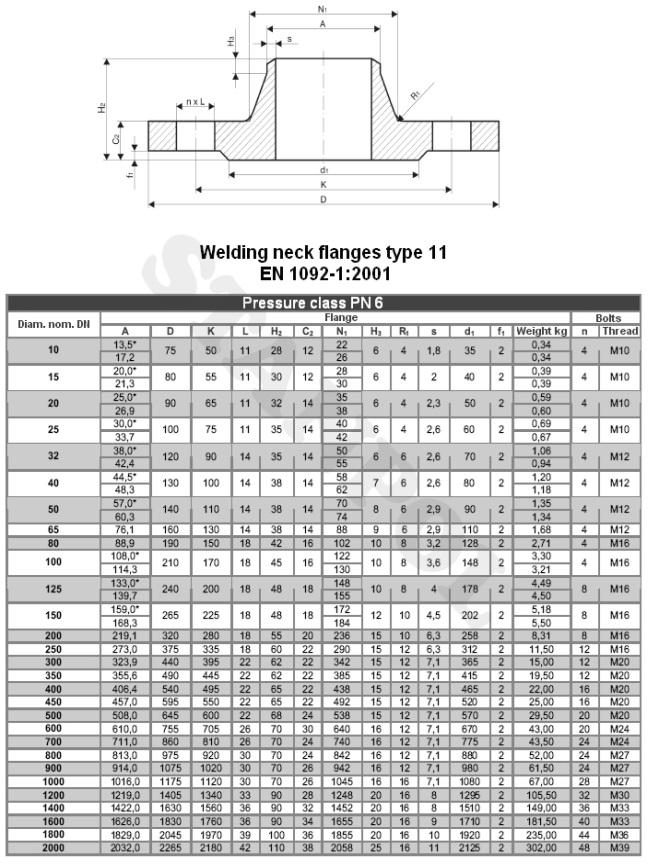

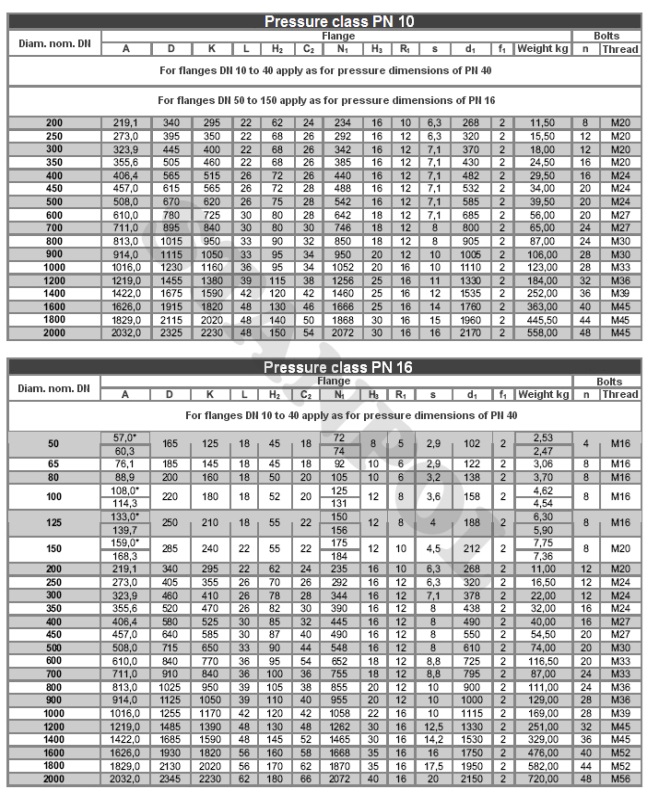

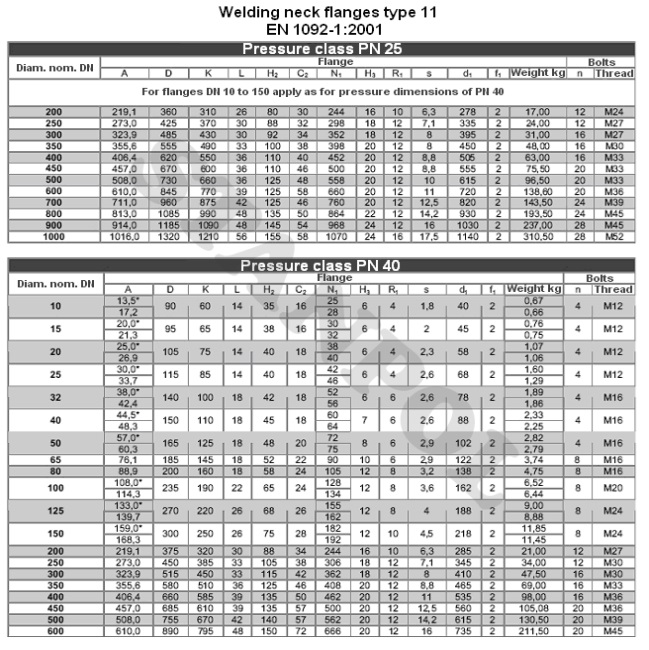

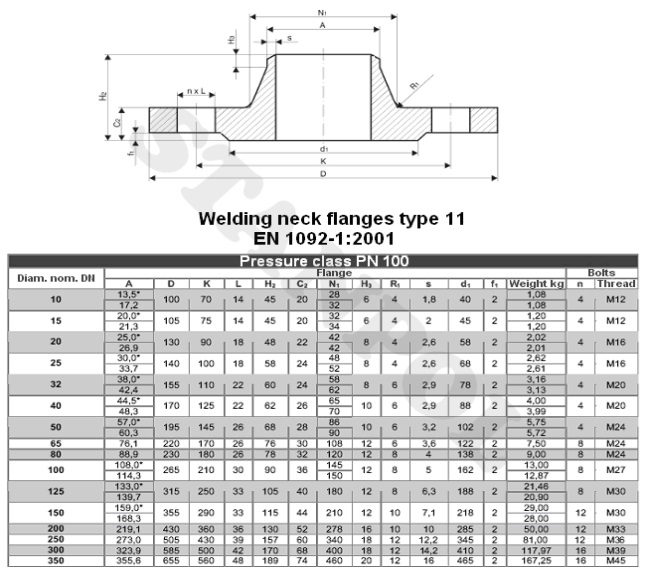

Welding neck flanges type 11

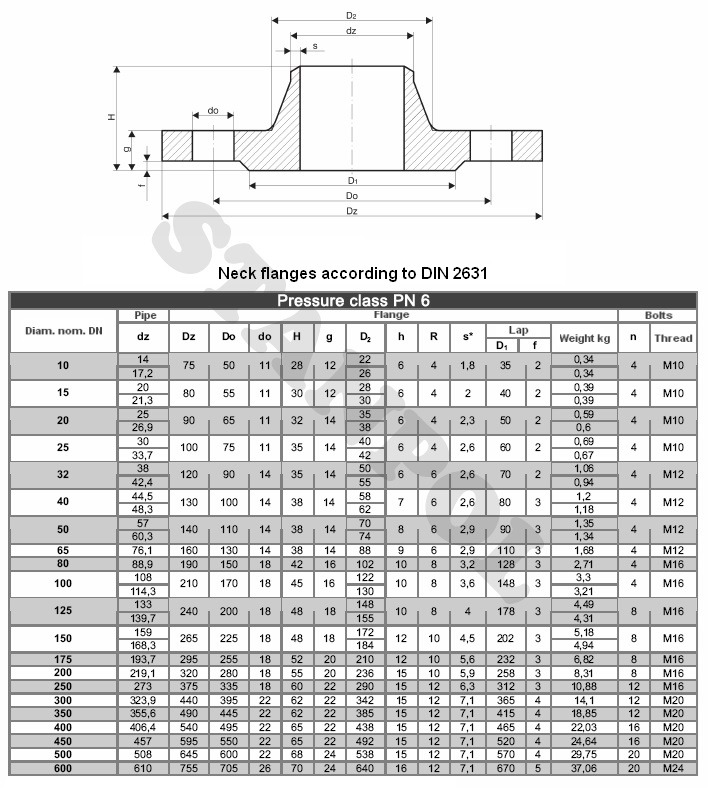

Neck flanges according to DIN 2631

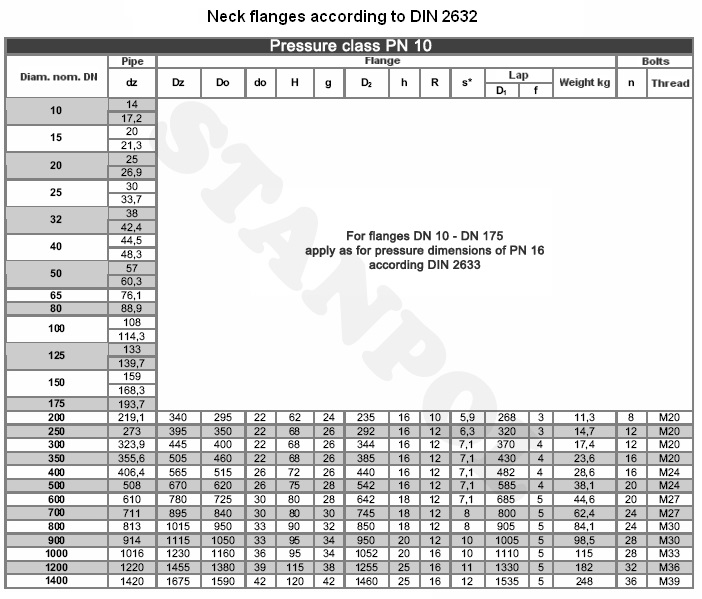

Neck flanges according to DIN 2632

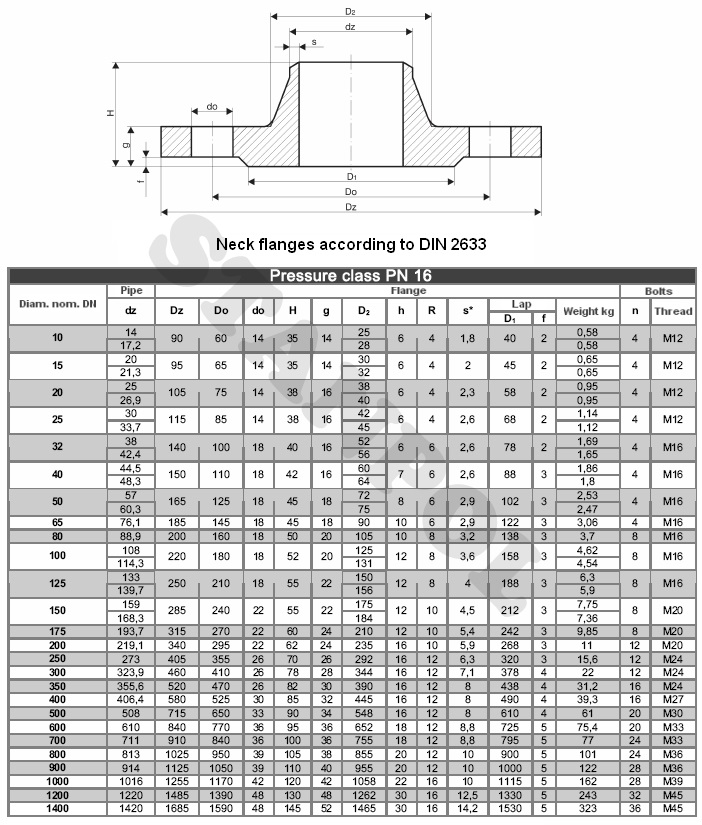

Neck flanges according to DIN 2633
Neck flanges according to DIN 2634

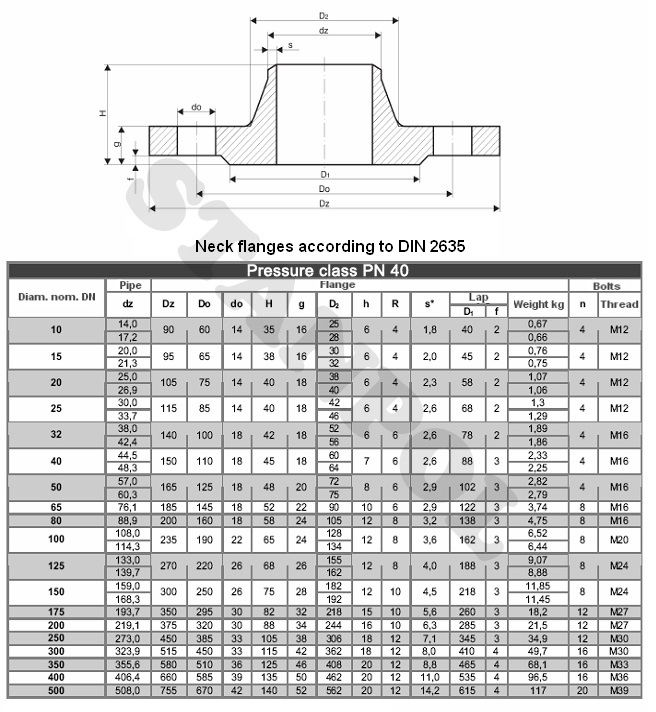

Neck flanges according to DIN 2635

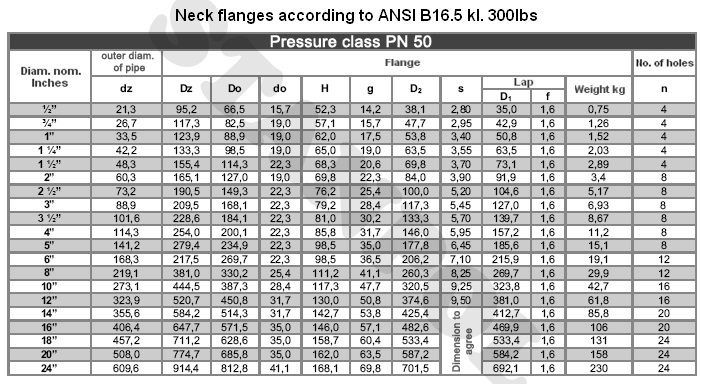

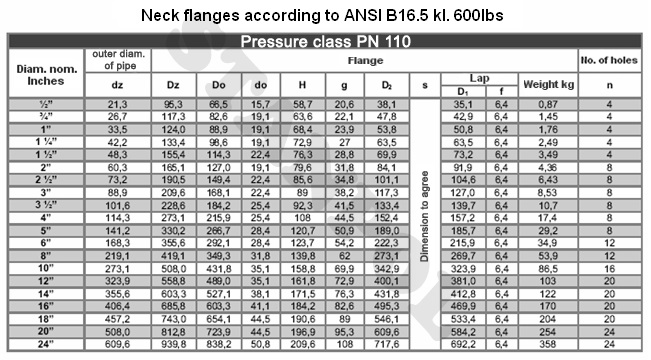

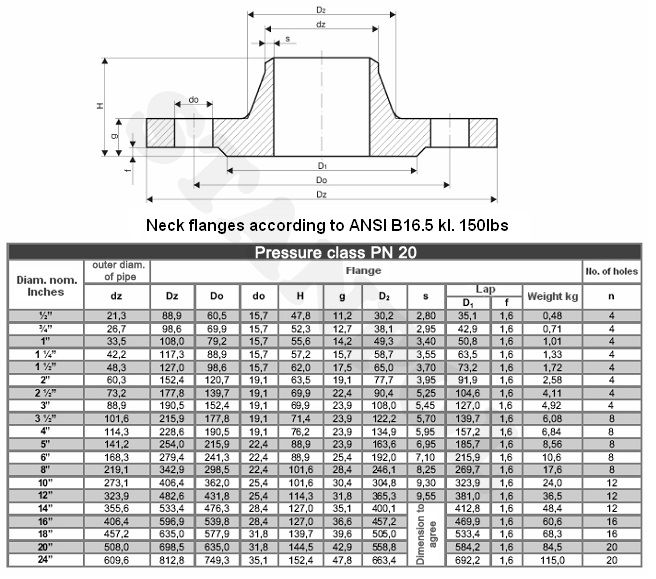

Neck flanges according to ANSI B16.5
If you require more info please contact us directly.
